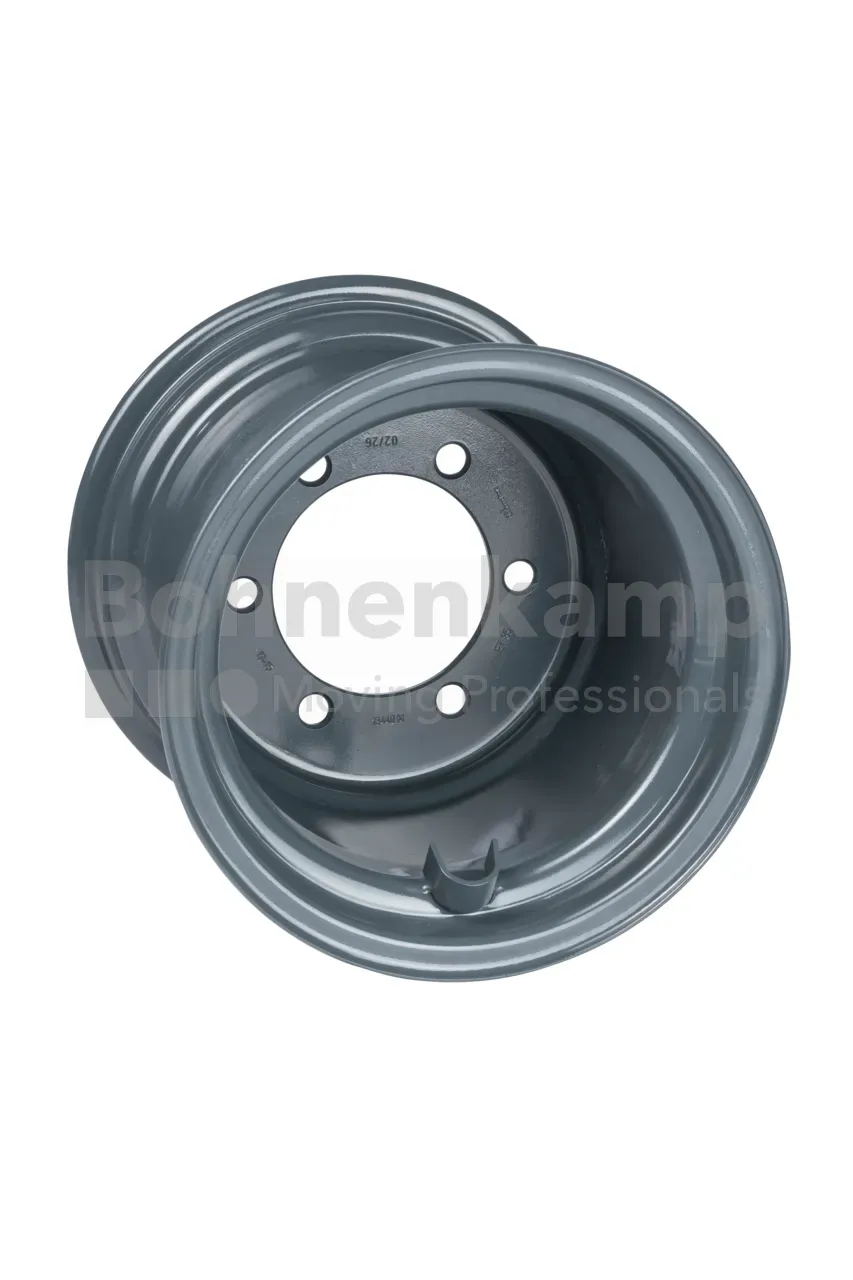

Rim 13 x 15
6/161/205, B2, Ø21.5mm, ET -85, VSH
2800/2350 kg - 40/50 km/h, Anthrazit RAL7016
Packaging unit: 18 items

Price and stock visible after Login .

Technical Details
Item number
10005834
Rim size
13 x 15
Rim connection
6/161/205
Model of bolt holes
B2
Offset
-85
Rim colour
Anthrazit
Brand
Jantsa
EAN
4040658145438
Load capacity of rim 1 (kg)
2800
Speed Rims 1 (km/h)
40
Load capacity of rim 2 (kg)
2350
Speed Rims 2 (km/h)
50
Maximum speed (km/h)
50
Type of drive
Driven & Towed axle
Net weight (kg)
19,40
Hump
kein Hump
Valve protection
VSH
Single / multi-part
einteilig
Rim material
steel
RAL
RAL7016
Disc thickness (mm)
10
Growl
without knurling
Ventilation holes
no
Rim centring
BC
Number of bolt holes
6
Bolt hole design EUWA
B18 DS 32
Bolt hole diameter (mm)
21,5
Countersinking
Sphere
Ball countersink (mm)
0
Hub hole diameter (mm)
161
Bolt circle
205
Suitable for RDA
no
Valve seat
External Valve
Valve hole diameter (mm)
15,7
Preassembled valve
no
TPMS-compatible Valve
no
show more
